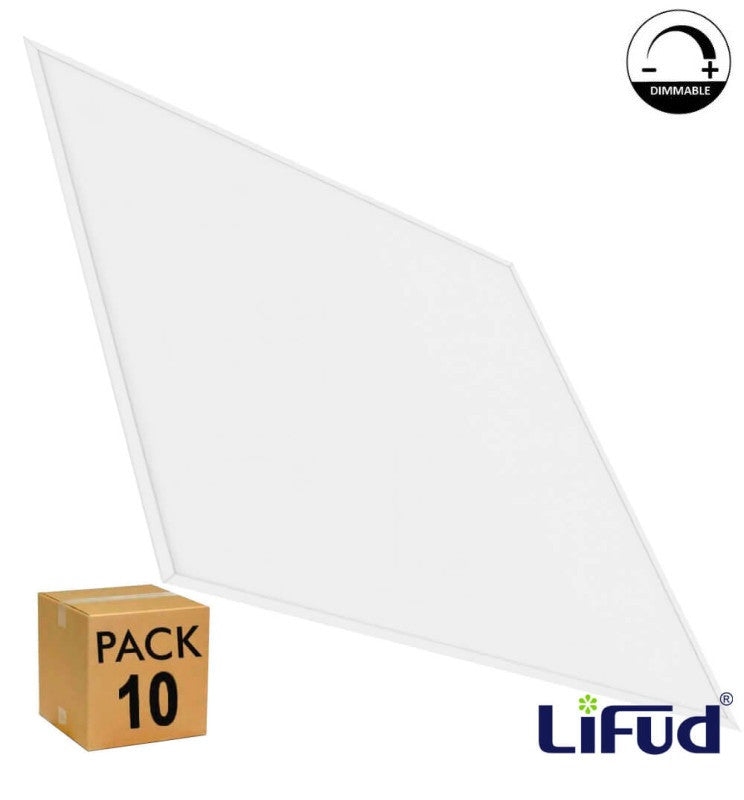

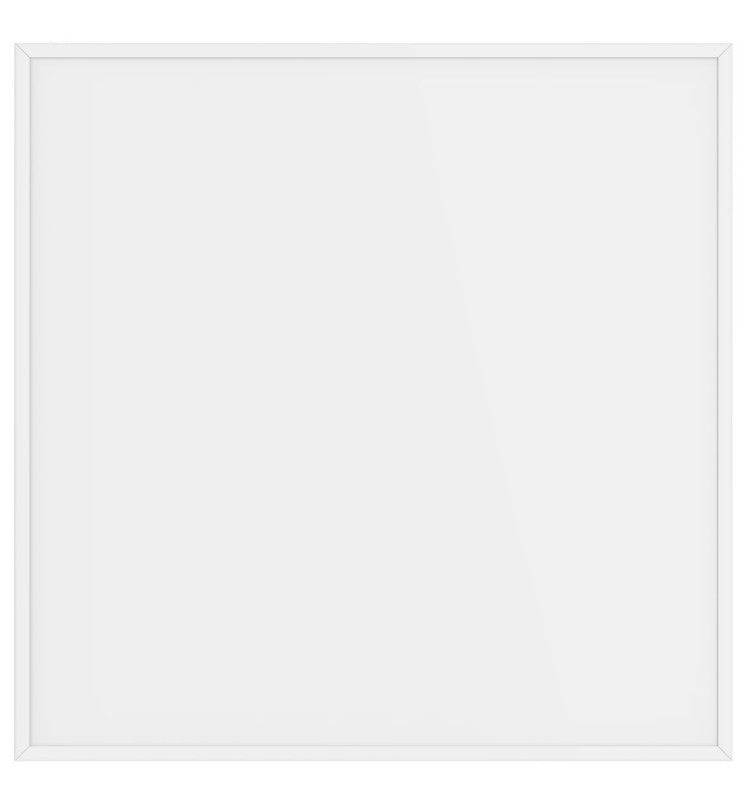

40W LED Panels 60x60 SLIM FRAME Dimmable with Lifud Driver 5700K - 10 PACK

Original price €300,64 - Original price €350,48
Original price
€300,64
€300,64 - €350,48
Current price €300,64

VAT included

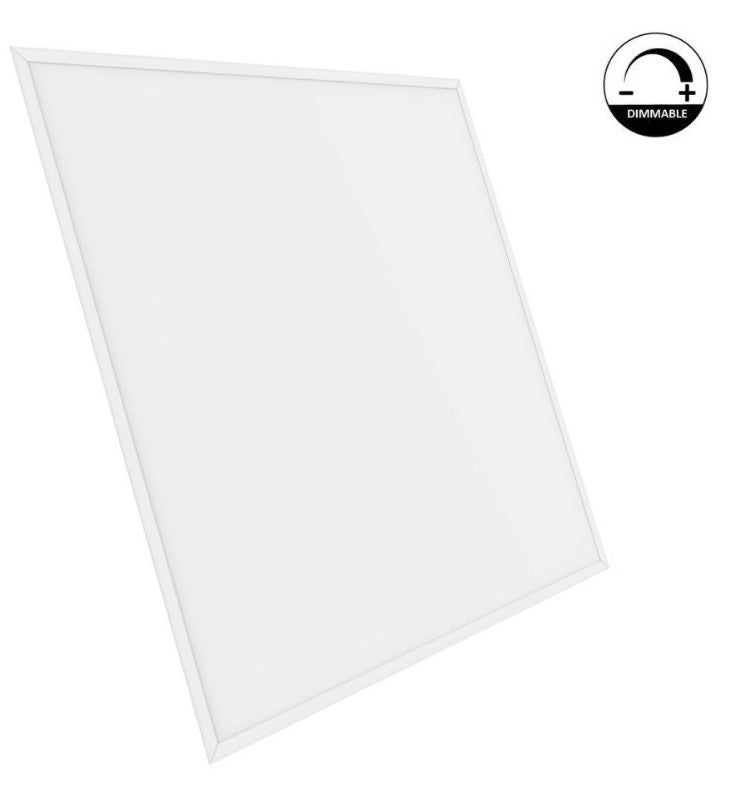

Illuminate professional spaces with style and efficiency using our 40W 60x60cm Dimmable Frameless LED panels. Made from high-quality aluminum with maximum light surface, they combine modern design, high luminous performance, and excellent visual comfort. Certified with ENEC05 and backed by a 5-year warranty, they are ideal for demanding projects where quality and reliability matter.

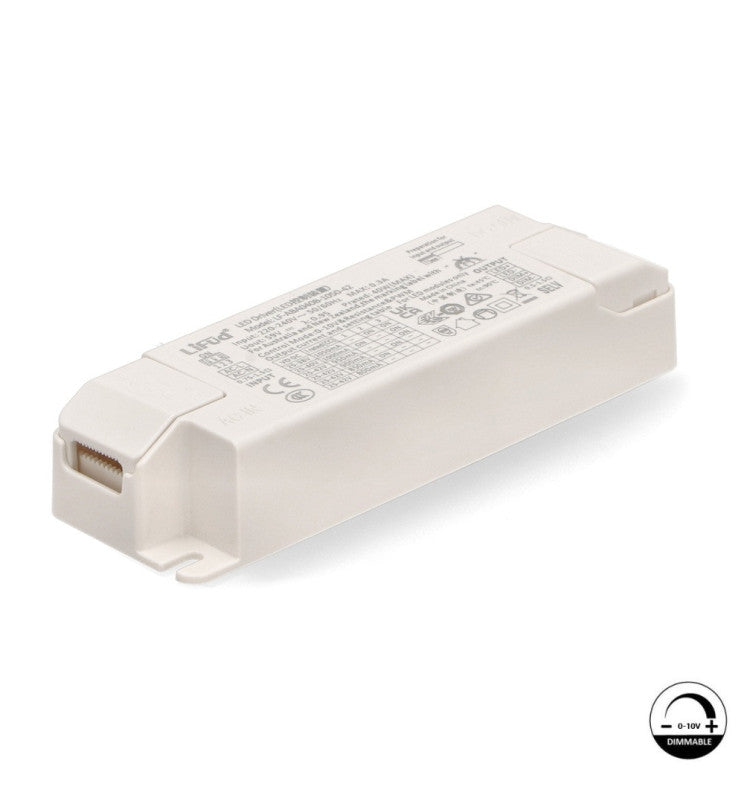

Each panel is paired with a dimmable LIFUD driver, allowing full control of brightness with three dimming options:

Dimming Options

  • TRIAC (LF40WTRIAC / LF-ABT040): Compatible with most phase-cut dimmers, suitable
  • for standard commercial and residential installations.
  • 0–10V (LF40W0-10V / LF-ABA040): Ideal for offices, schools, and retail spaces with analog low-voltage control systems.
  • DALI/PUSH (LF40WDALI / LF-ADD040): Designed for advanced automation and centralized control, perfect for smart buildings and premium projects.

Key Features

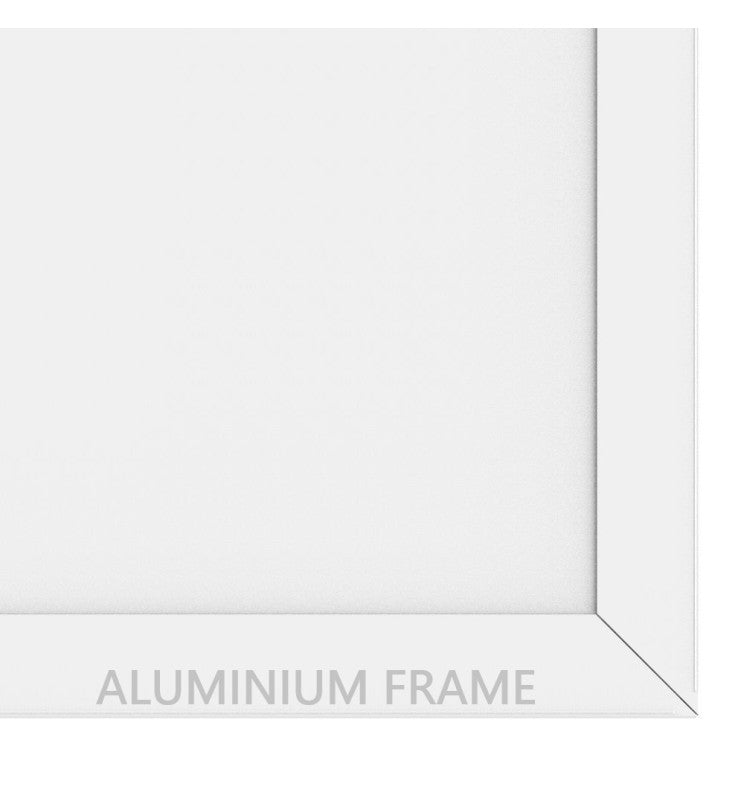

- Frameless aluminum design with maximum light surface

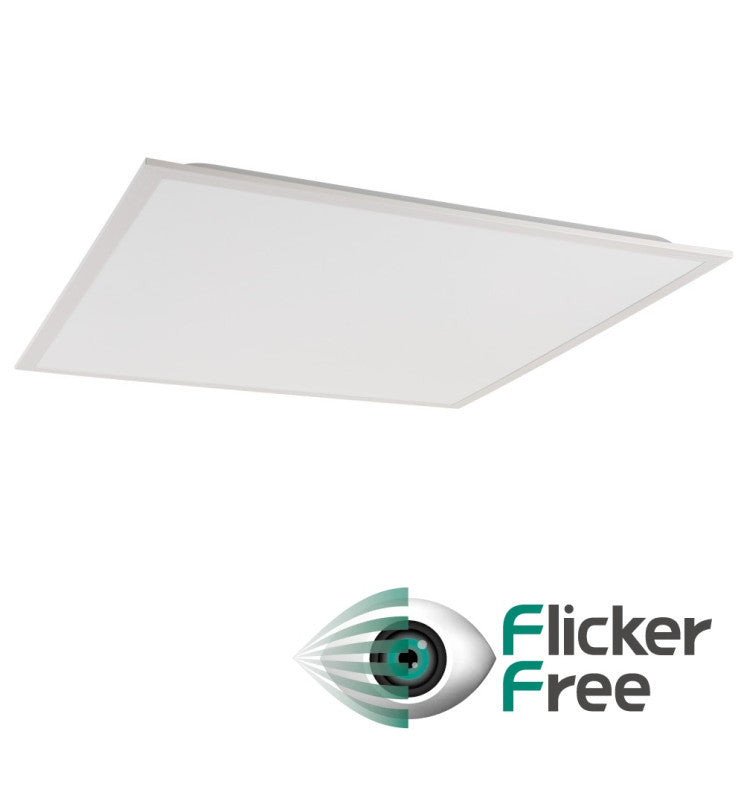

- High luminous performance with flicker-free startup
- Dimmable via TRIAC / 0–10V / DALI/PUSH drivers
- ENEC05 certified, ensuring quality and safety
- 5-year professional warranty

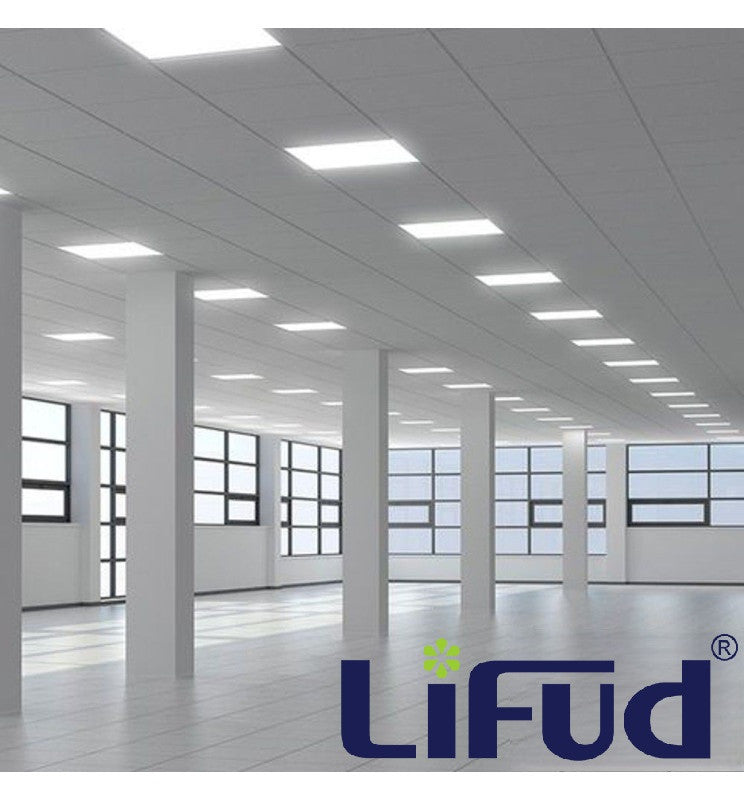

Ideal For: Offices, schools, hospitals, clinics, hotels, restaurants, retail, logistics centers, laboratories, and cleanrooms.

Technical specifications

REFERENCE: DIM-PNLIF40W
Rated Power: 40w
Nominal Voltage: 220V-240V
Colour Temperature: 4000K - 5700K
CRI - Chromatic Rendiment Index: 80
Construction Material: Aluminiun+PC
Luminosity-Lm: 4000
Number & Type of LEDs: SMD 2835
Beam Angle (º): 120º
Luminous diodo LED (Lm/W): 140 Lm/W
Luminous Efficiency (Lm/W): 100Lm/W
Dimmable: YES
Certifications: CE, CMIM, RoHS
IP: IP20
Diode Life Expectancy (H): 40.000

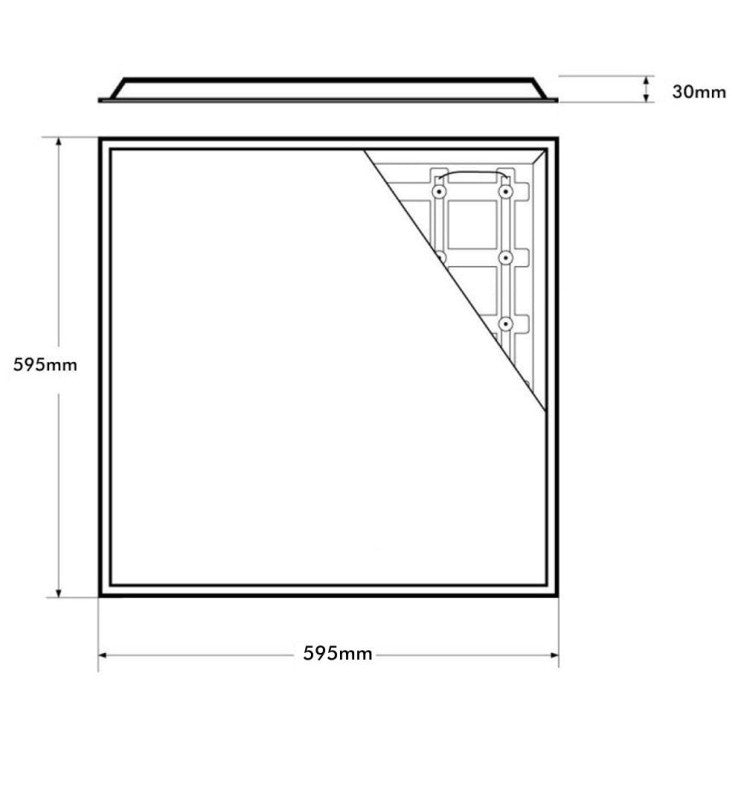

Dimensions (mm): 595X595mmH30mm
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Starting Time (s): 0,2s
Glare Rating (UGR): 17
Driver included: YES
Driver included: Lifud Driver
Energy Rating (2021-UE-2019/2015): A+
Energy Rating (2023 - UE-2019/2015): E
Warranty Years: 5
