40W 120cm Tri-proof LED Batten Microwave Sensor & Emergency Kit Philips Driver 3CCT

Original price €85,36 - Original price €85,36
Original price
€85,36
€85,36 - €85,36
Current price €85,36

VAT included

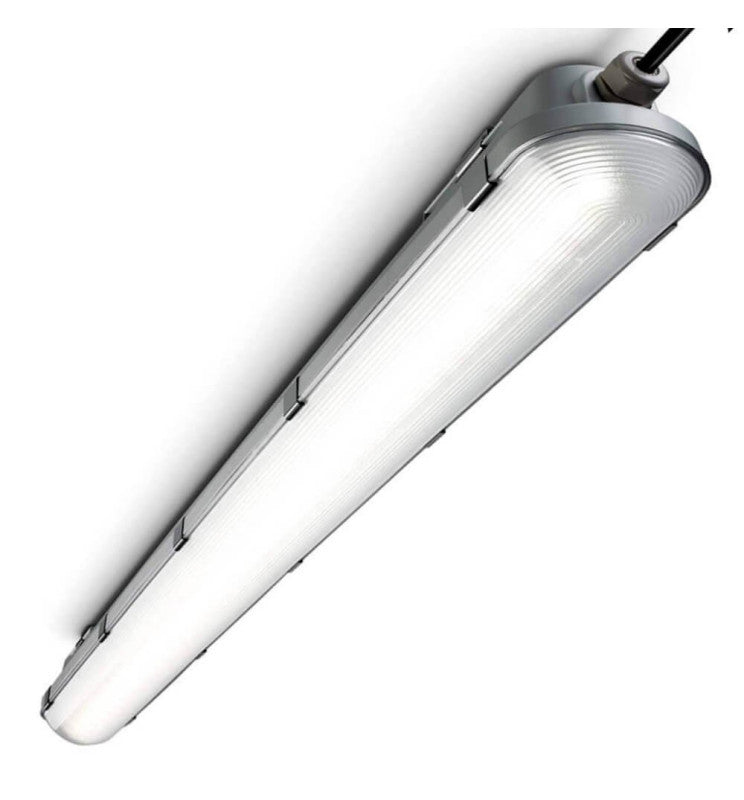

The COREPLUS EVO 120cm LED tri-proof batten combines high performance, safety, and smart control in one professional solution. It features selectable power (25W / 30W / 35W / 40W) and 3CCT colour temperatures (3000K / 4000K / 6000K), allowing full flexibility for different environments.

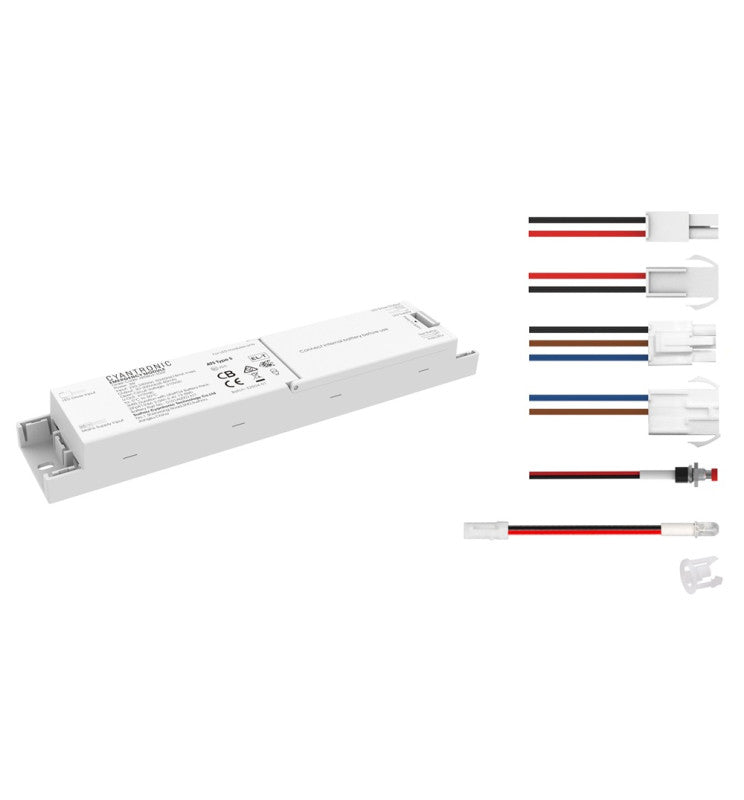

Equipped with a Philips Xitanium driver and efficient SMD2835 LEDs (140 lm/W), it delivers bright, uniform light with a power factor >0.9. The integrated emergency module (3W) provides up to 3 hours of backup lighting during power outages, ensuring safety without additional components.
A Plug & Play radar motion sensor automatically activates the light when movement is detected, improving energy efficiency and convenience—ideal for low-traffic areas.

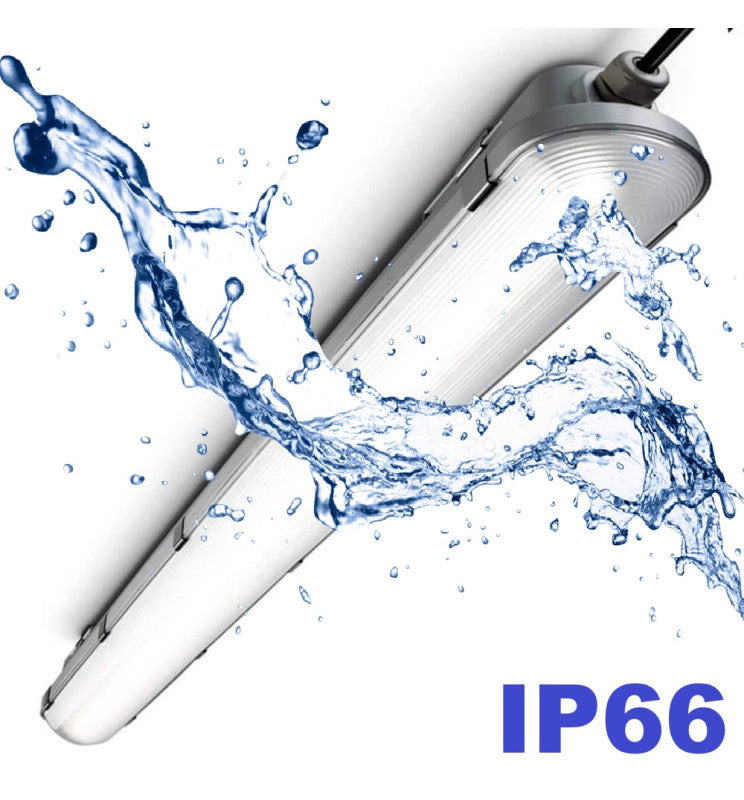

With IP66 and IK10 protection, the luminaire is highly resistant to dust, water, and impact. The semi-transparent diffuser ensures glare-free illumination, while the dual-end connection allows quick and efficient continuous installation.

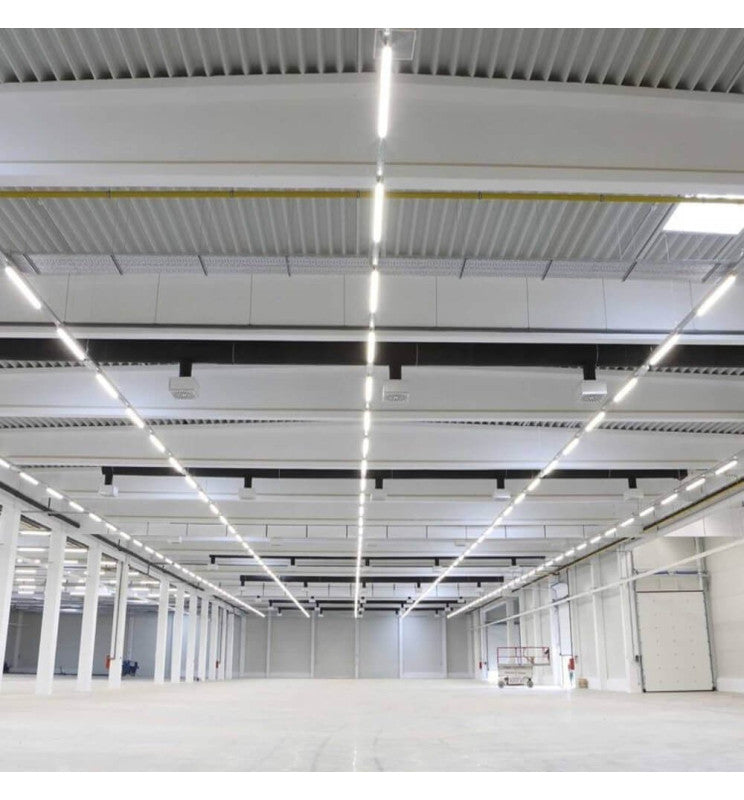

Perfect for warehouses, car parks, workshops, cold rooms, industrial kitchens, and access areas, the COREPLUS EVO offers durability, efficiency, and intelligent control in one reliable fixture.

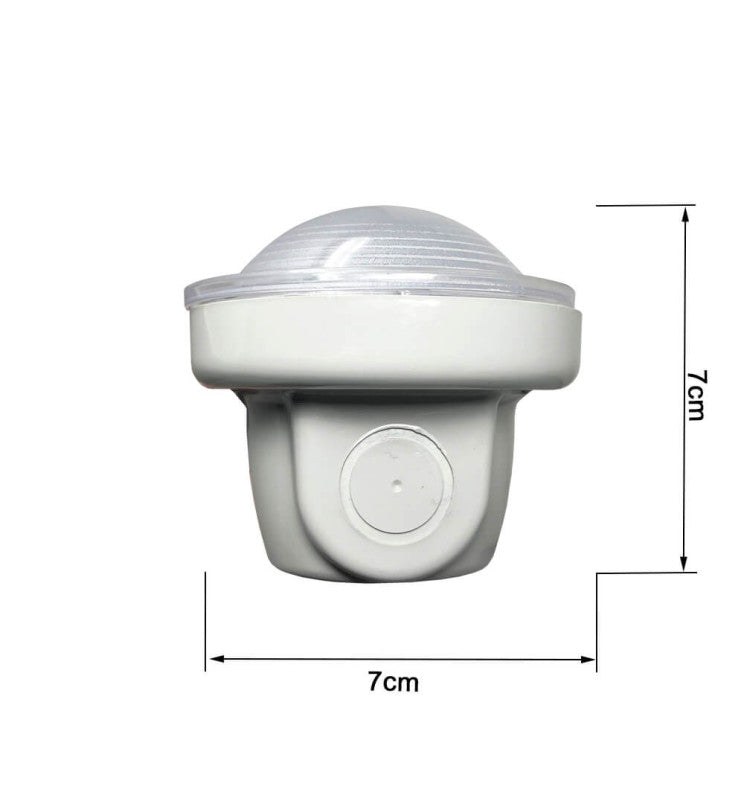

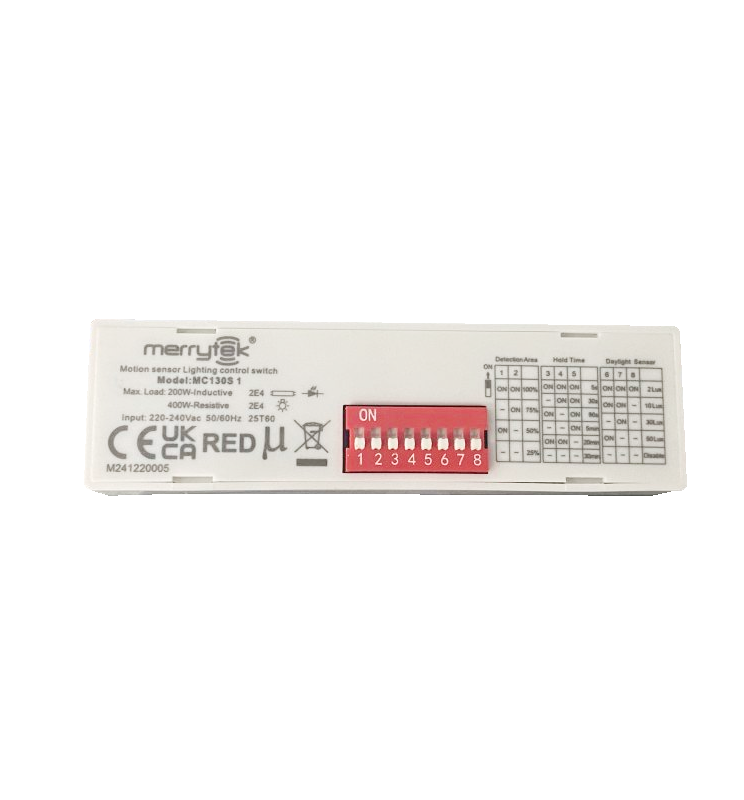

Sensor specifications:
Detection radius: r ≥ 3 m (ceiling mounting), r ≥ 8 m (wall mounting)
Detection speed: 1 m/s, 100 % sensitivity, 165 cm person
Mounting height: 2.5–5 m (ceiling), 2–3 m (wall)

Technical specifications

Rated Power: 40W
CRI - Chromatic Rendiment Index: 80
Number & Type of LEDs SMD: 2835
Beam Angle (º): 120°
Luminous diodo LED (Lm/W): 165Lm/W
Luminous Efficiency (Lm/W): 140 Lm/W
IP: IP66
Diode Life Expectancy (H): 35.000
Power Factor (PF): 0.95
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Starting Time (s): 0,2s
Impact Protection (IK): IK10
Warranty Years: 5
Energy Rating (2023 - UE-2019/2015): E

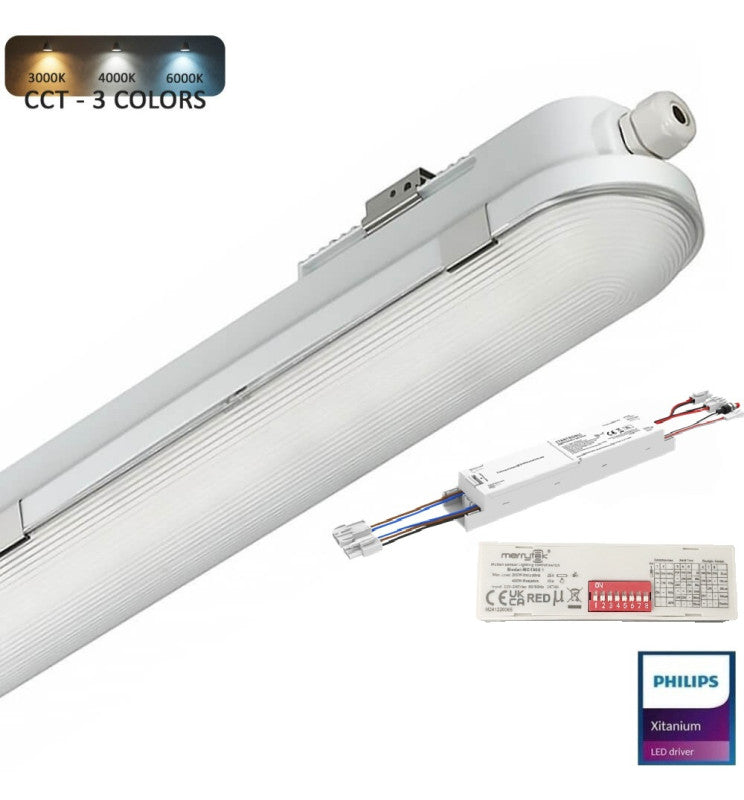

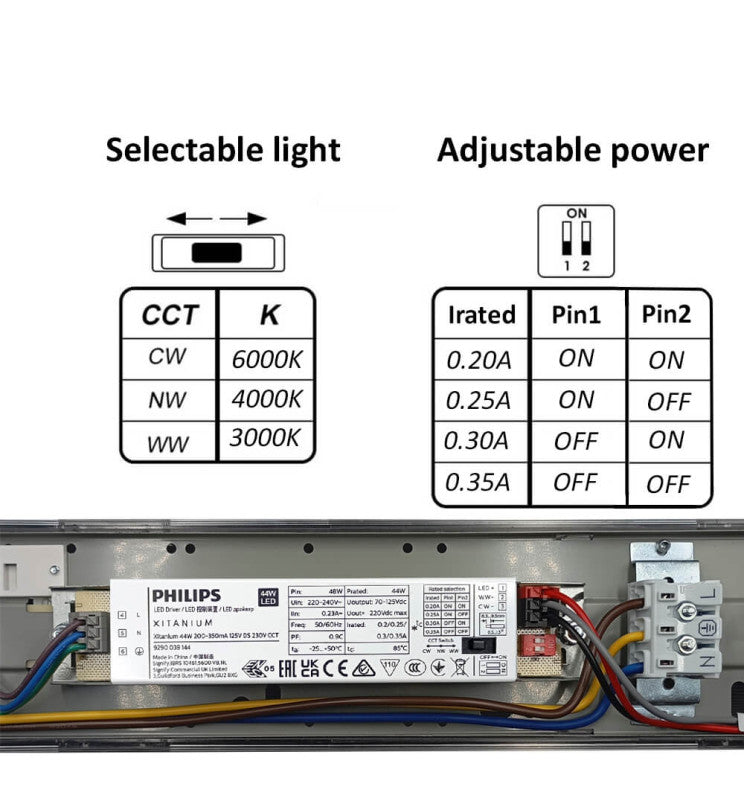

Colour Temperature: Selectable 3000K-4000K-6000K
Rated Power: Selectable 25W / 30W / 35W / 40W
Luminosity-Lm: 5600Lm
Certifications: CE - RoHS - EMC - UL
Dimensions (mm): L: 1150 W:81 H:71 mm
Construction Material: ABS + Makrolon® 2807

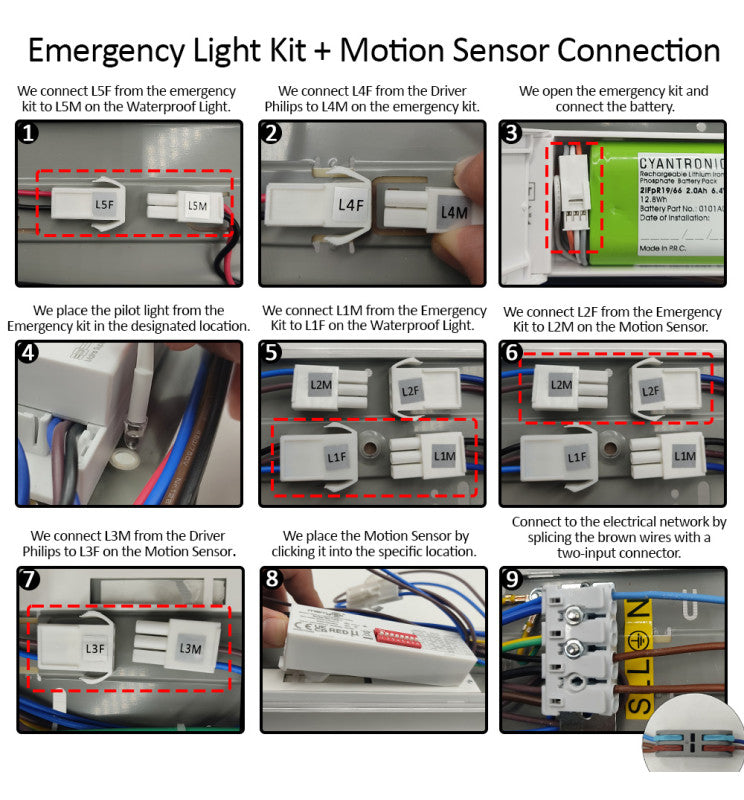

Other Information: Emergency kit, 3w up to 3 hours
Other Information: Radar sensor

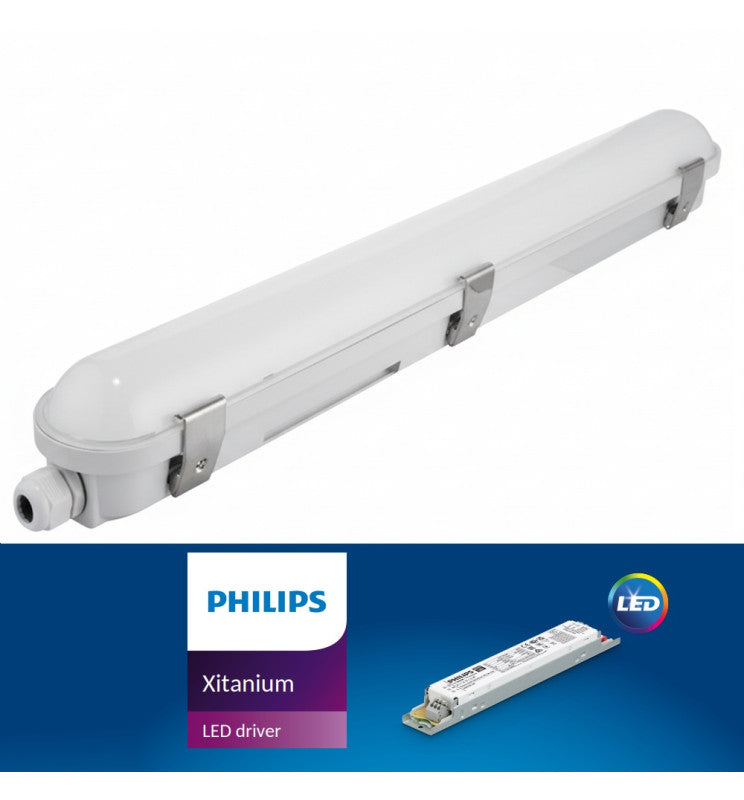

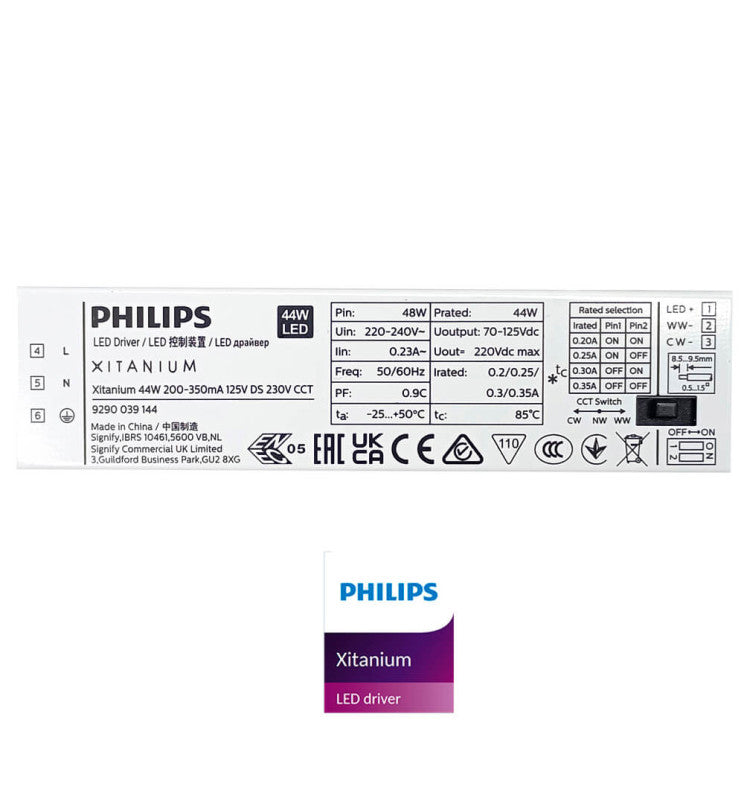

Driver included: Philips Xitanium Non Isolated 3CCT SWITCH

Availability:
43 in stock, ready to be shipped
Availability:
Only 2 left!

FOR B2B PRICE, PLEASE LOG IN OR APPLY TO BECOME A PARTNER
