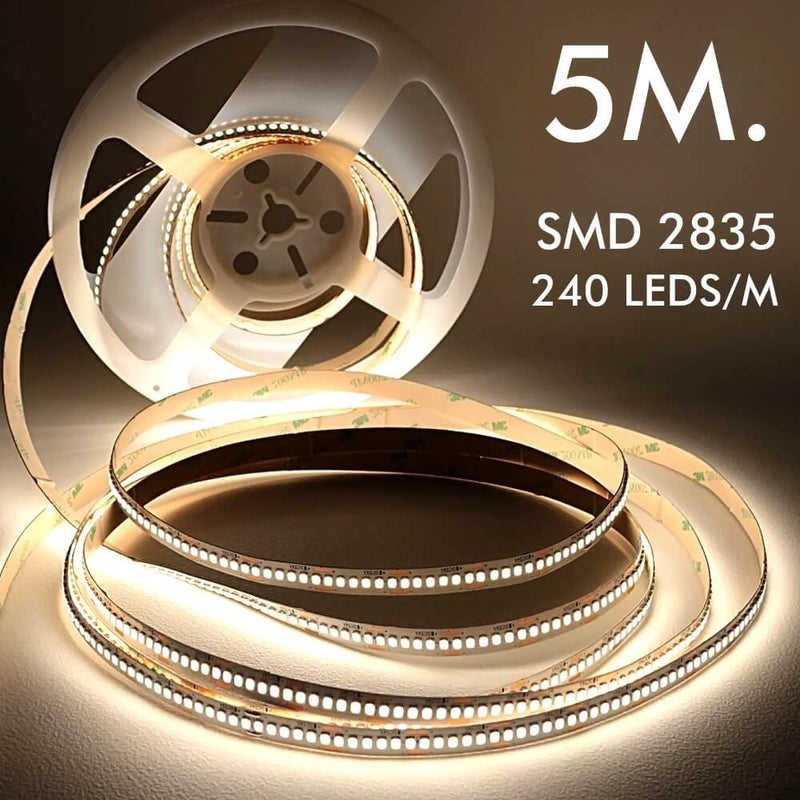

LED Strip 24V | 5m | SMD2835 | 2200Lm | 25W/M | IP20 | 2700k

Ledtronika Ireland LtdSKU: 90673-UND-27K
No reviews

Price:
Sale price€43,95

Description

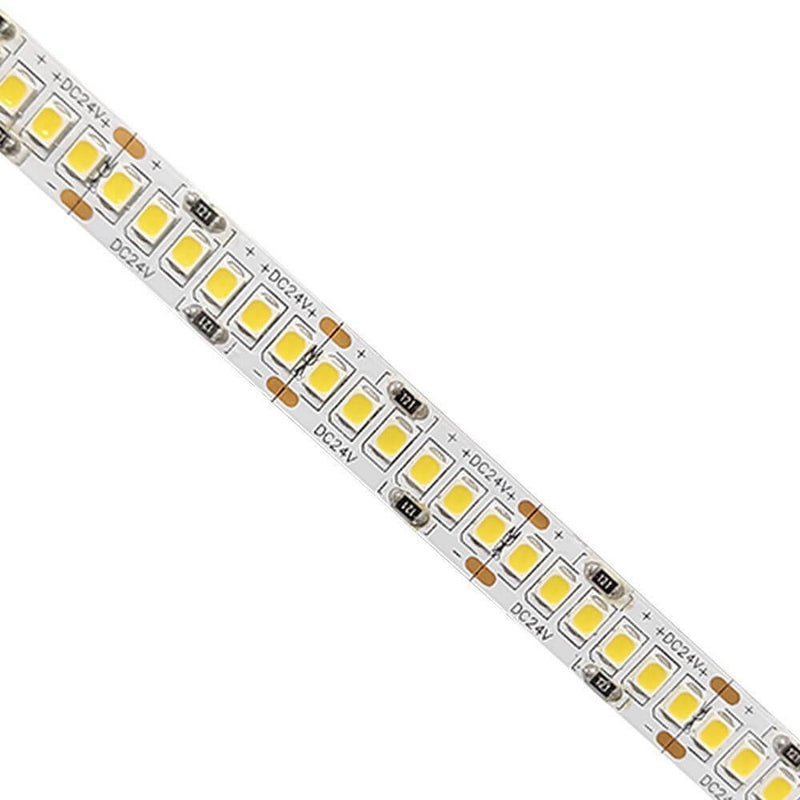

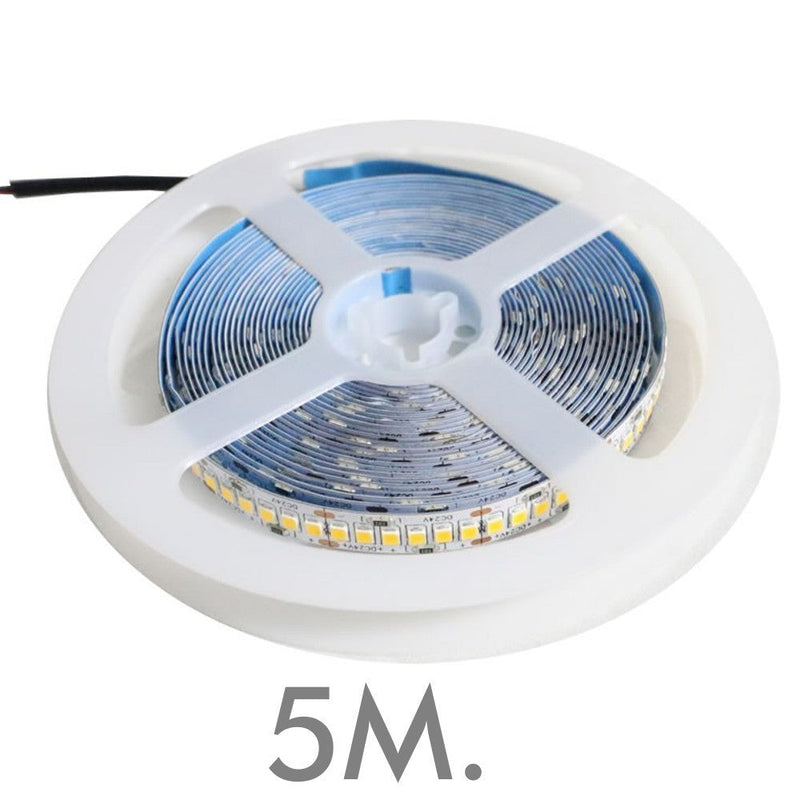

This 24V DC 238LED / m IP20 LED Strip has a length of 5 meters and integrates 238 highly efficient SMD2835 technology LEDs that only consume 13 watts per meter. The bright and colorful light it emits is spread out at an angle of 120º.

Our LED strip is self-adhesive for easy installation. The LED strip requires a constant current (DC) direct current power supply to power it. The LED strips can be dimmed

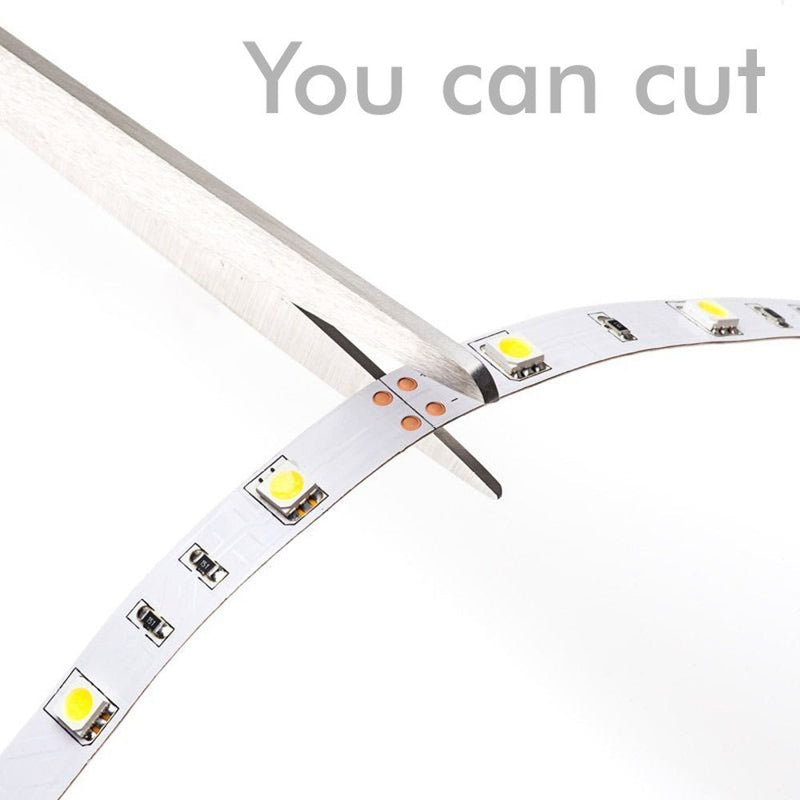

The LED strip can be cut and joined by the spaces indicated in it (union copper area), always following the relevant instructions, (be careful that the welder maintains a brief contact with the strip when welding it, since excessive heat will damage the conductor).

It is recommended that any type of installation of this type does not exceed 10 meters to avoid voltage drops of the direct current that powers the LED strips, although you also have the option of feeding the strip from both ends, a more recommended option if you go place 20 continuous meters. For the installation of more continuous meters, you will need the installation of signal amplifiers for the LED strip.

In its placement, to increase the useful life of the LED strip, it is advisable to use the double-sided heat dissipating tape, as well as to place it on an aluminum profile, for a correct management of the heat of the LED strip itself.

You can find on our website both signal amplifiers, such as dissipative tape, connection accessories, 12-24v power supplies, as well as aluminum profiles.

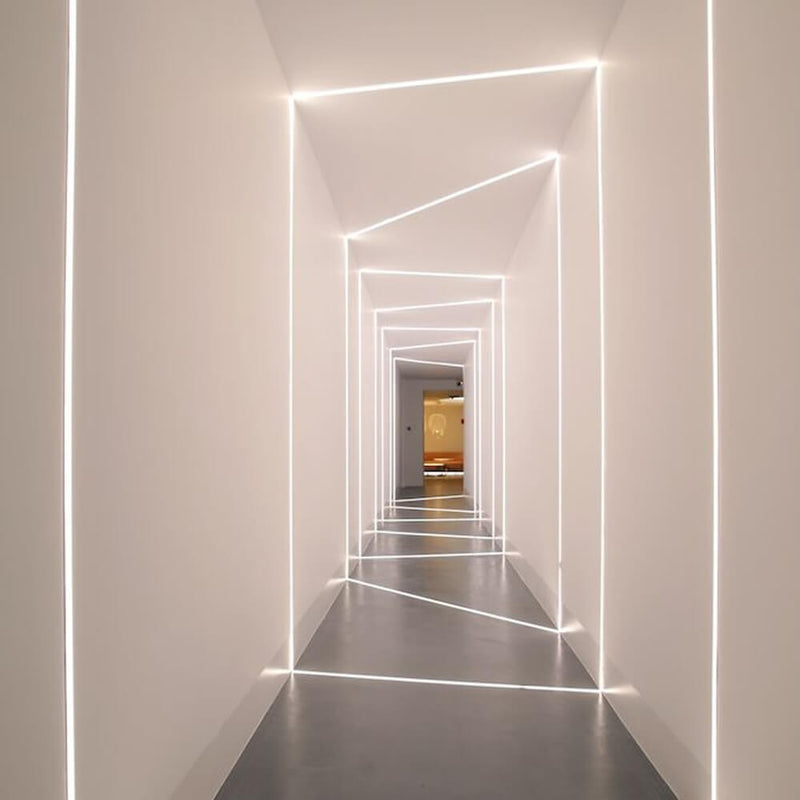

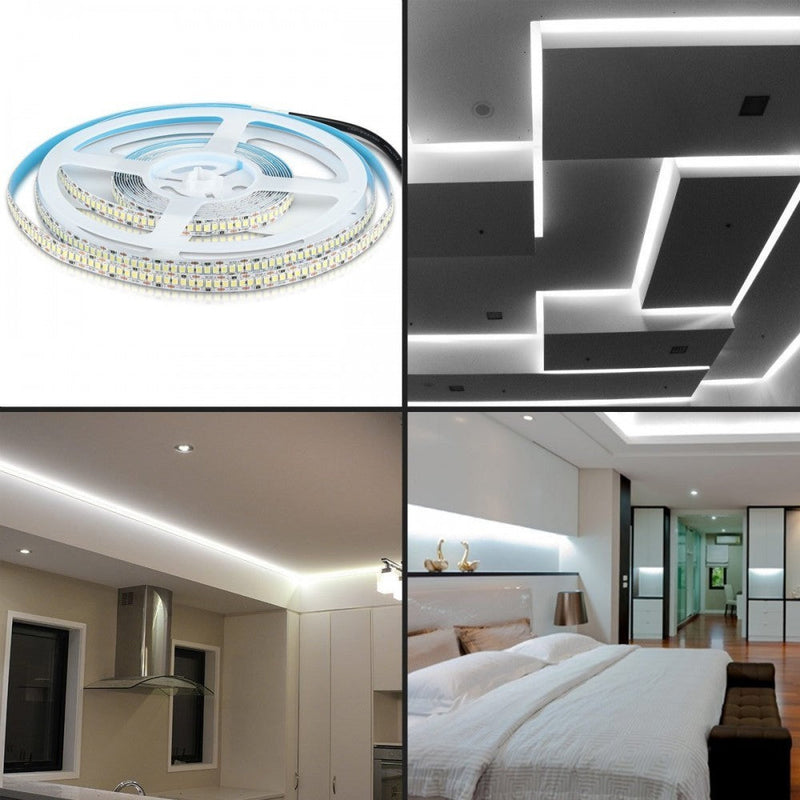

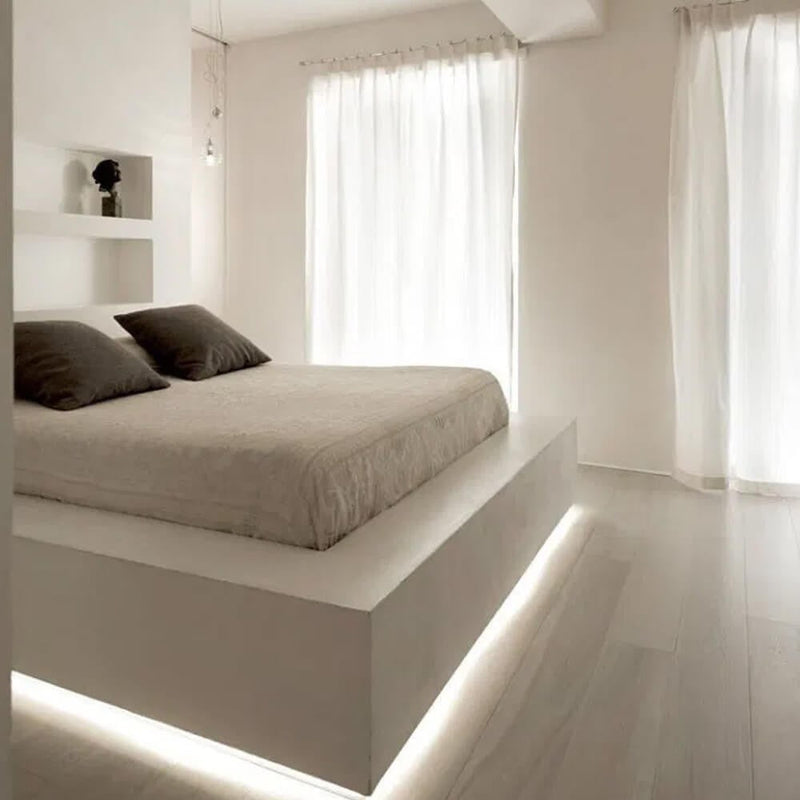

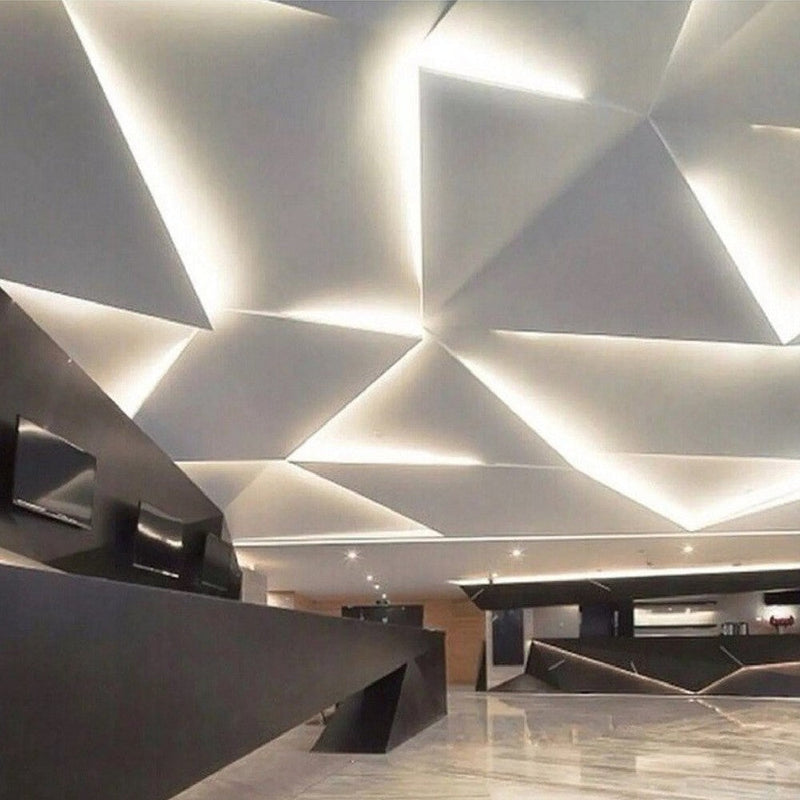

The LED strips are ideal to illuminate any type of corner or element of your business and your home, thanks to its flexibility. It can be said that one of its main advantages is the great versatility of uses that it can be given, since they can be installed in any area and adapt to any corner, and thus be placed in any position, due to its adaptable linear design.

Uses of LED PROFESSIONAL Strip 24V | 240xLED/m | 5m | SMD2835 | 2200Lm | 25W/M | IP20

  • In libraries
  • Bar
  • Home
  • Restaurants
  • Roofs

DATA SHEET


REFERENCE: SP240D25W

Rated Power : 20w

Nominal Voltage: 24V DC

Colour: 2700K

CRI - Chromatic Rendiment Index: 80

Construction Material: PCB
Luminosity-Lm: 1M: 2200Lm - 5M: 11000Lm

Number & Type of LEDs: 240 LEDs/M - SMD2835

Beam Angle (º): 120º

Certifications: CE - ROHS

IP : IP20

Diode Life Expectancy (H): 100.000

Dimensions (mm): 5m x 10mm

Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C

On/Off Cycles: 100.000

Energy Rating (2021-UE-2019/2015): A+

Warranty Years: 3
