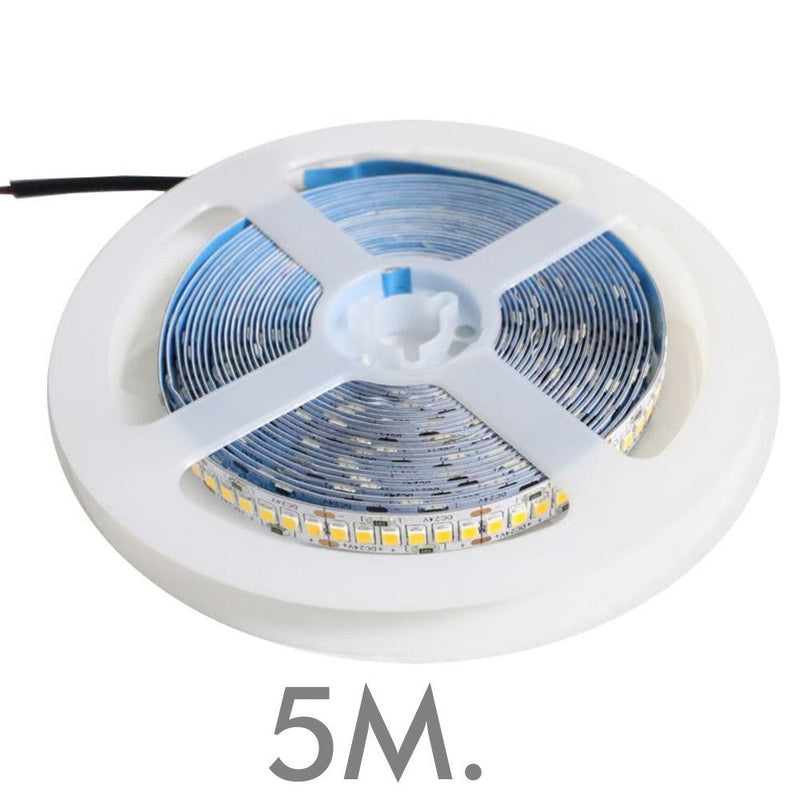

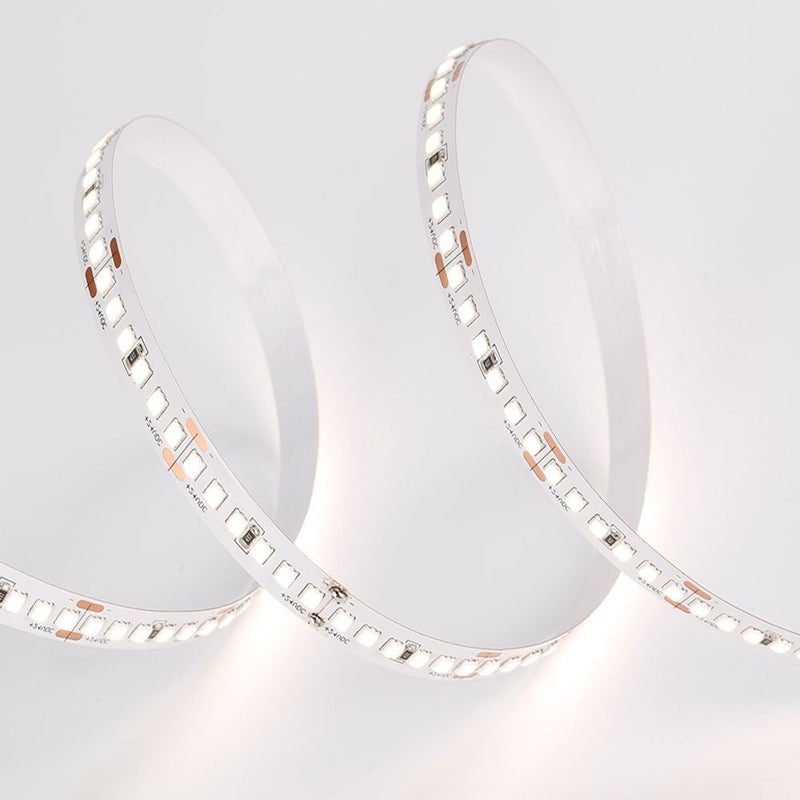

24V LED Strip - 5m - 20W/M - IP20 - 2700k
This 24V DC 238LED / m IP20 LED Strip has a length of 5 meters and integrates highly efficient SMD2835 technology LEDs that only consume 13 watts per meter. The bright and colorful light it emits is spread out at an angle of 120º.
24V power supplies are not included.
Our LED strip is self-adhesive for easy installation. The LED strip requires a constant current (DC) direct current power supply to power it. The LED strips can be dimmed

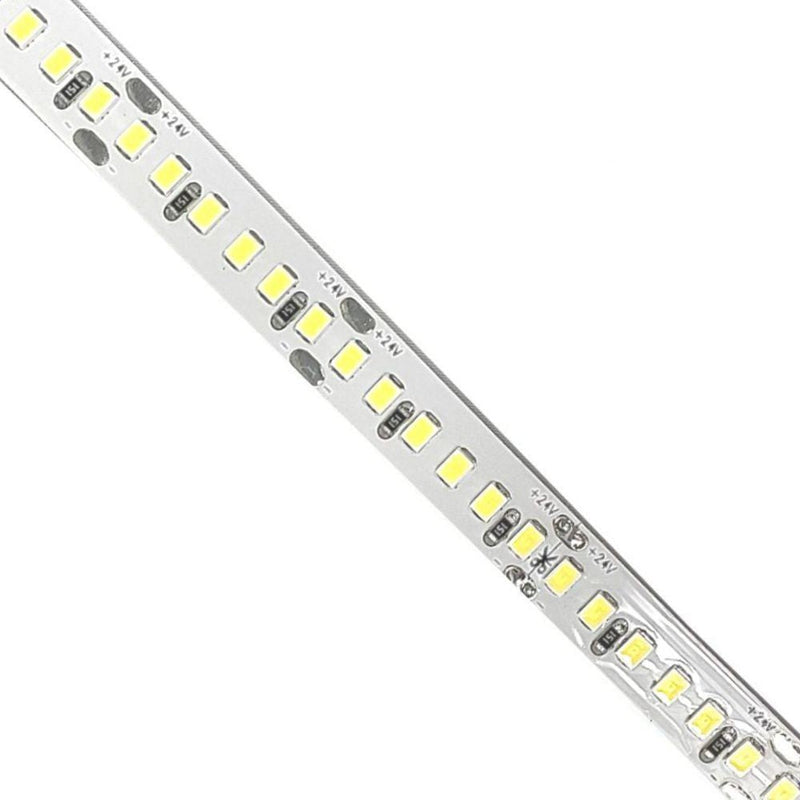

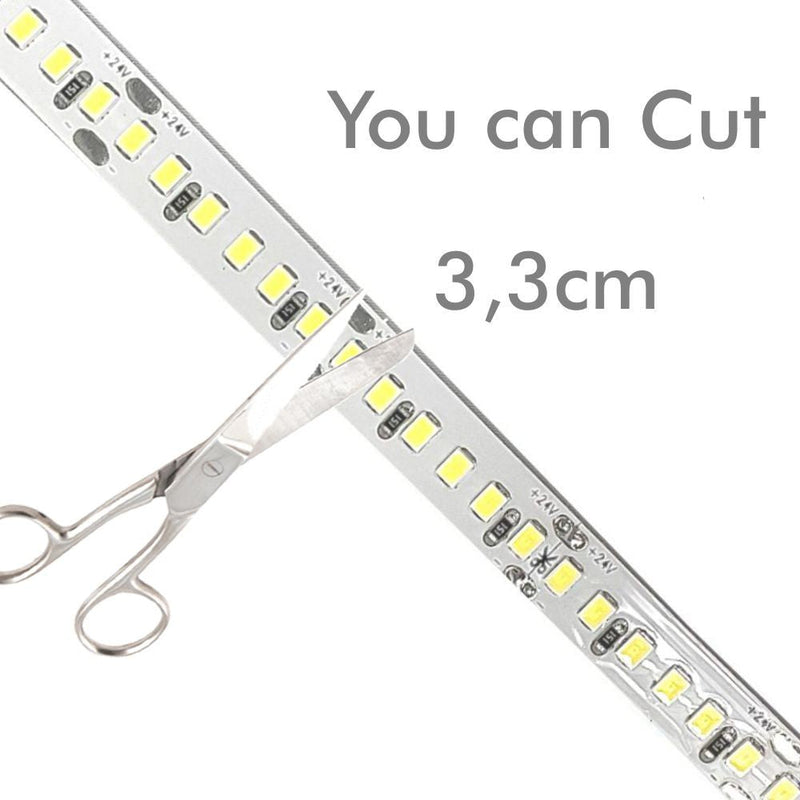

The LED strip can be cut and joined by the spaces indicated in it (union copper area), always following the relevant instructions, (be careful that the welder maintains brief contact with the strip when welding it since excessive heat will damage the conductor).
It is recommended that any type of installation of this type does not exceed 10 meters to avoid voltage drops of the direct current that powers the LED strips, although you also have the option of feeding the strip from both ends, a more recommended option if you go place 20 continuous meters. For the installation of more continuous meters, you will need the installation of signal amplifiers for the LED strip.
In its placement, to increase the useful life of the LED strip, it is advisable to use the double-sided heat dissipating tape, as well as to place it on an aluminum profile, for correct management of the heat of the LED strip itself.

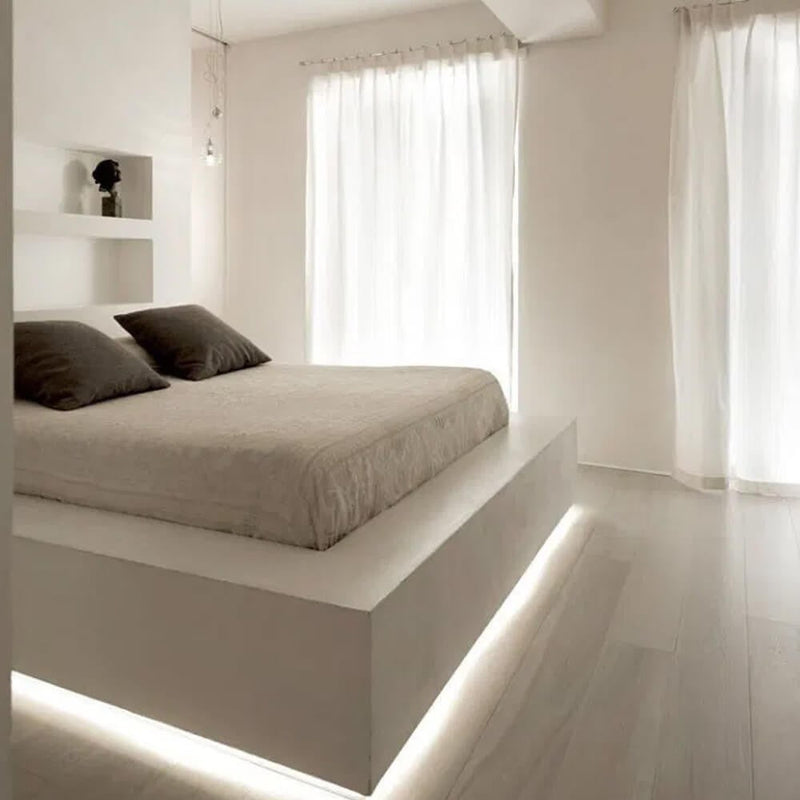

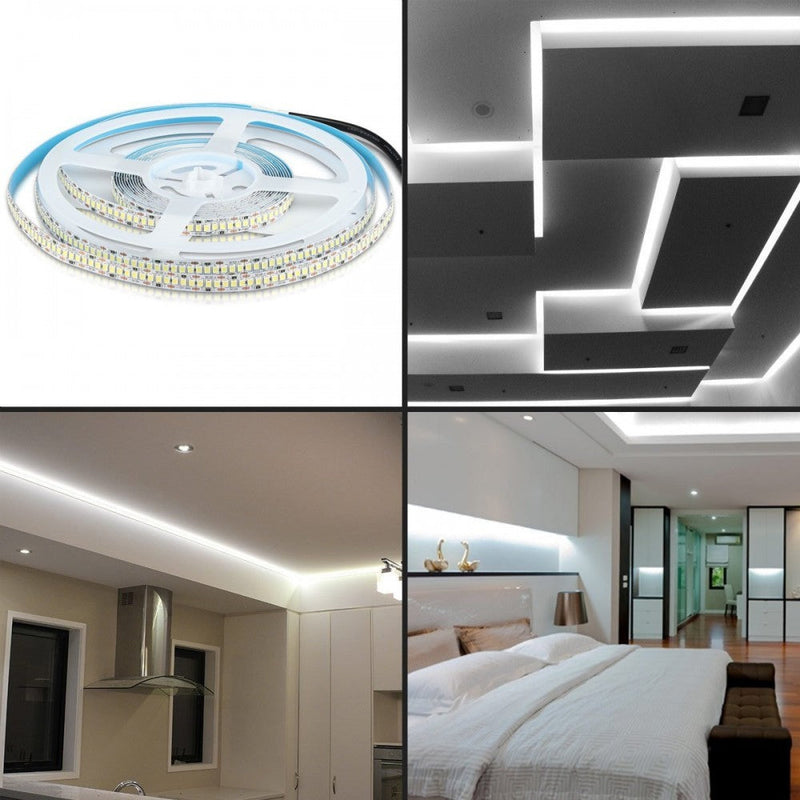

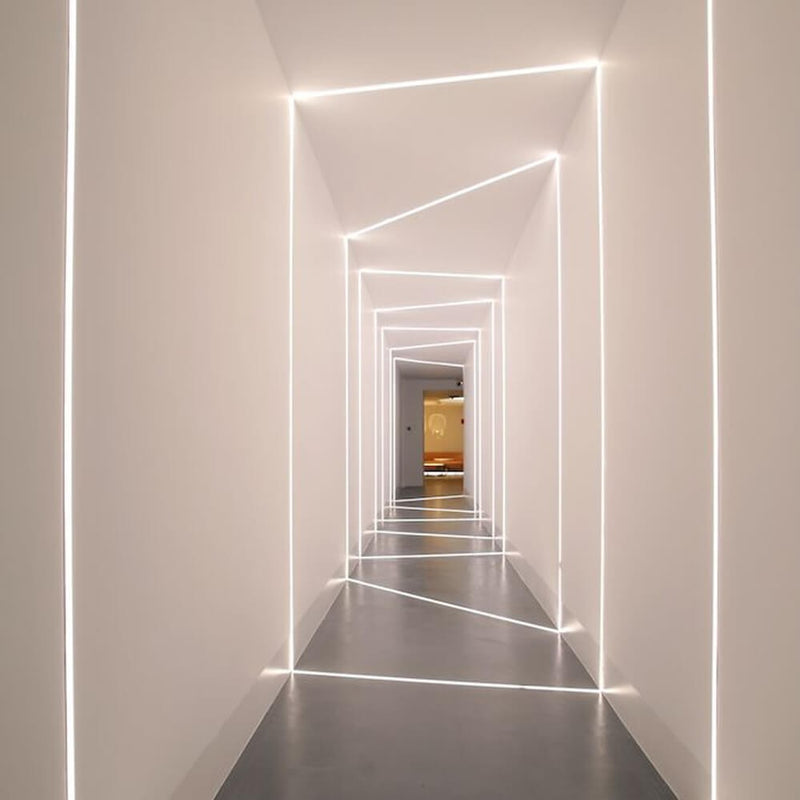

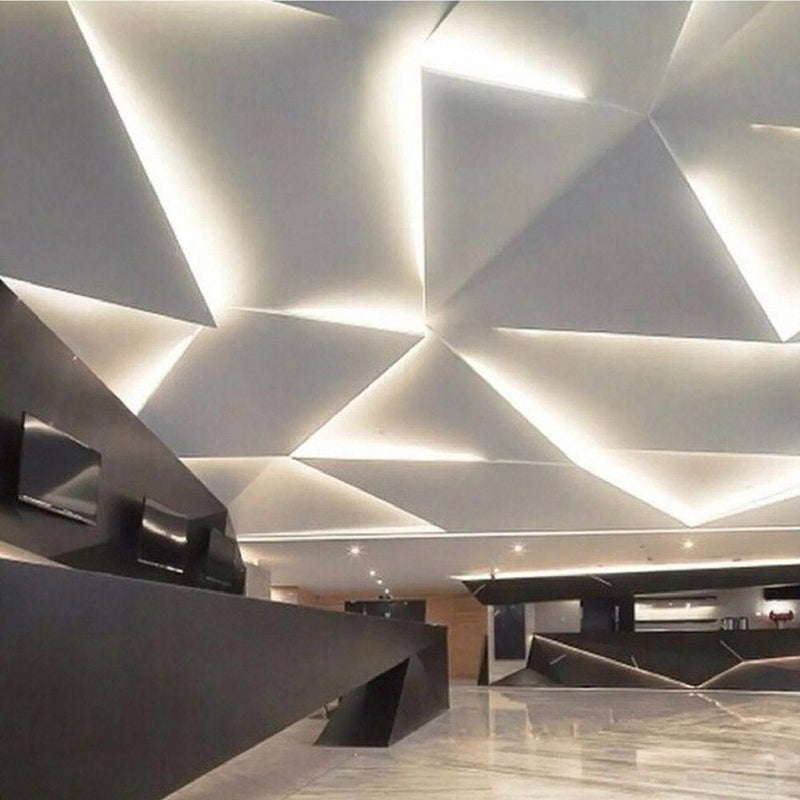

The LED strips are ideal to illuminate any type of corner or element of your business and your home, thanks to its flexibility. It can be said that one of its main advantages is the great versatility of uses that it can be given, since they can be installed in any area and adapt to any corner, and thus be placed in any position, due to its adaptable linear design.
Uses of LED PROFESSIONAL Strip 24V | 180xLED/m | 5m | SMD2835 | 2200Lm | 20W/M | IP20
- In libraries
|Rated Power :||20w|
|Nominal Voltage:||24V DC|
|CRI - Chromatic Rendiment Index:||80|
|Luminosity-Lm:||1M: 1700Lm - 5M: 8500Lm|

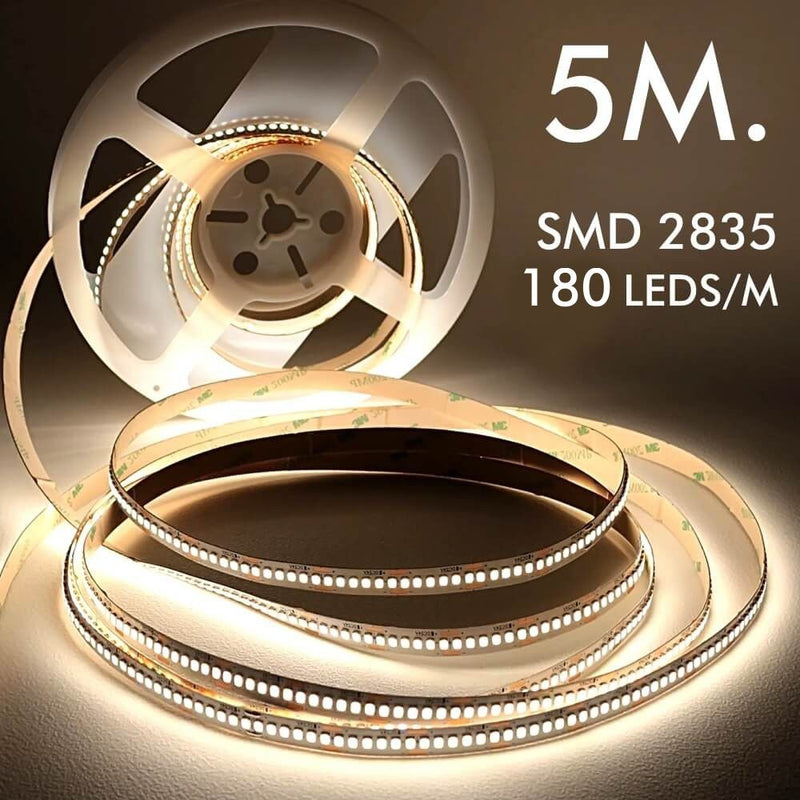

|Number & Type of LEDs:||180 LEDs/M - SMD2835|
|Beam Angle (º):||120º|
|Certifications:||CE - ROHS|
|Diode Life Expectancy (H):||100.000|
|Dimensions (mm):||5m x 10mm|
|Temperature Range (ºC):||-20°C ~ +55°C|
|Energy Rating (2021-UE-2019/2015):||A+|
