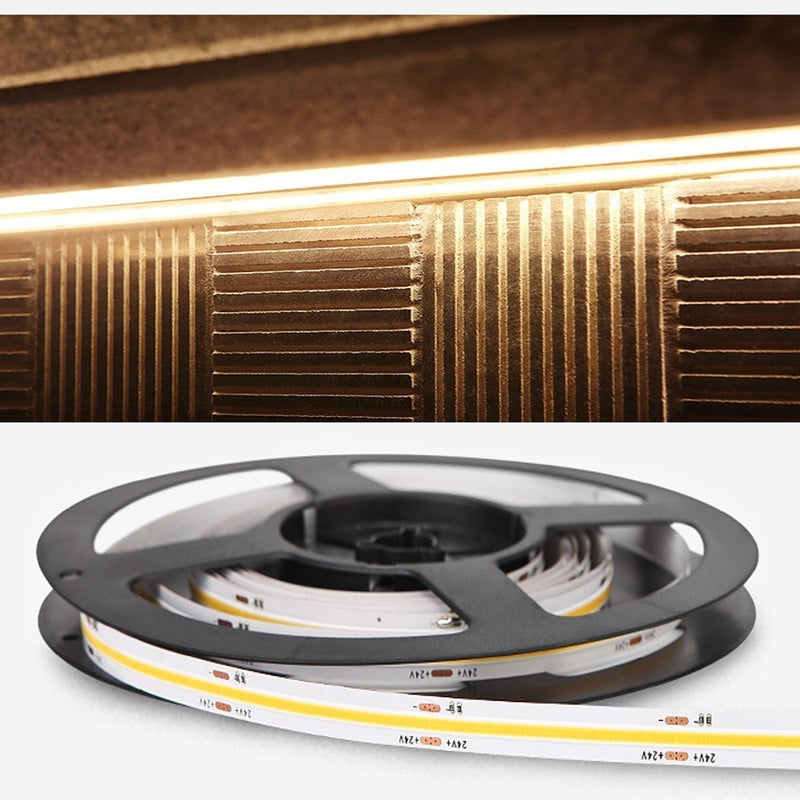

5m Self-adhesive 24V COB LED Strip 512LED/m 5700K
LED Strip COB 24V | 512 LED/m | 5m | FLIP CHIP | 1650Lm | 15W/M | CRI90 | IP20

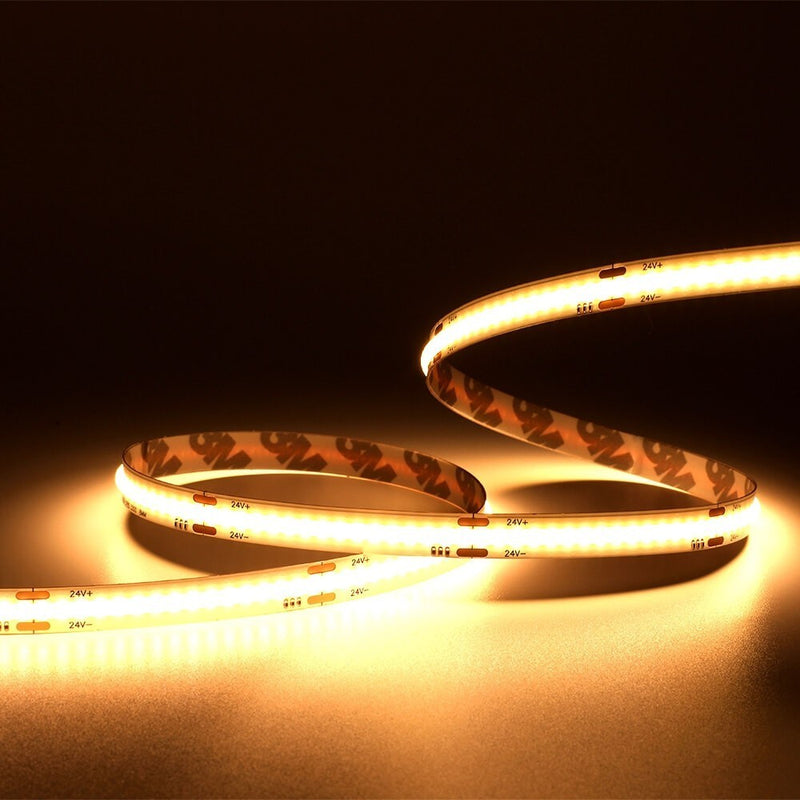

Our 24 Volt 15W COB LED strip is self-adhesive for easy installation. The LED strip requires a constant current (DC) direct current power supply to power it. The LED strips can be dimmed (-Dimmable-).

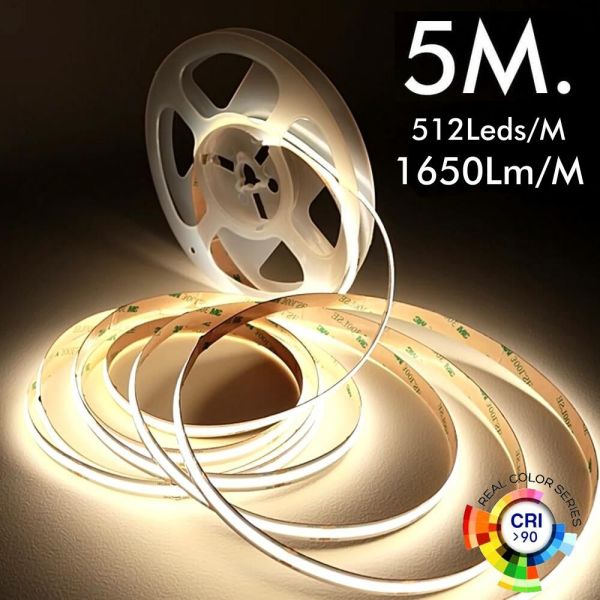

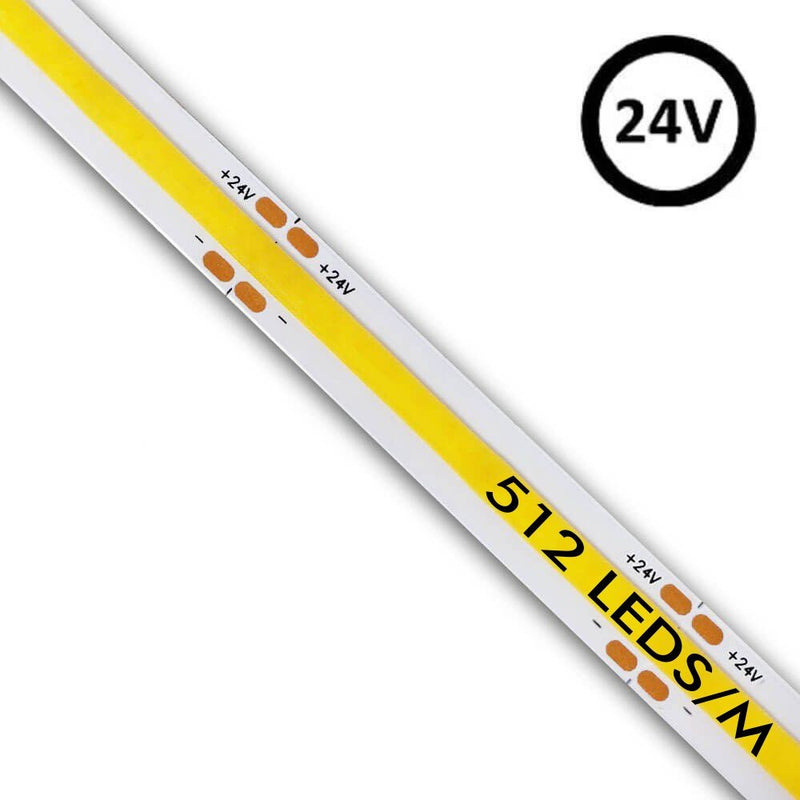

This COB Led Strip has 512 FLIPCHIP chips per meter, with which we achieve a uniform light throughout the strip, in addition to having higher Lm / W performance than traditional SMD LEDs

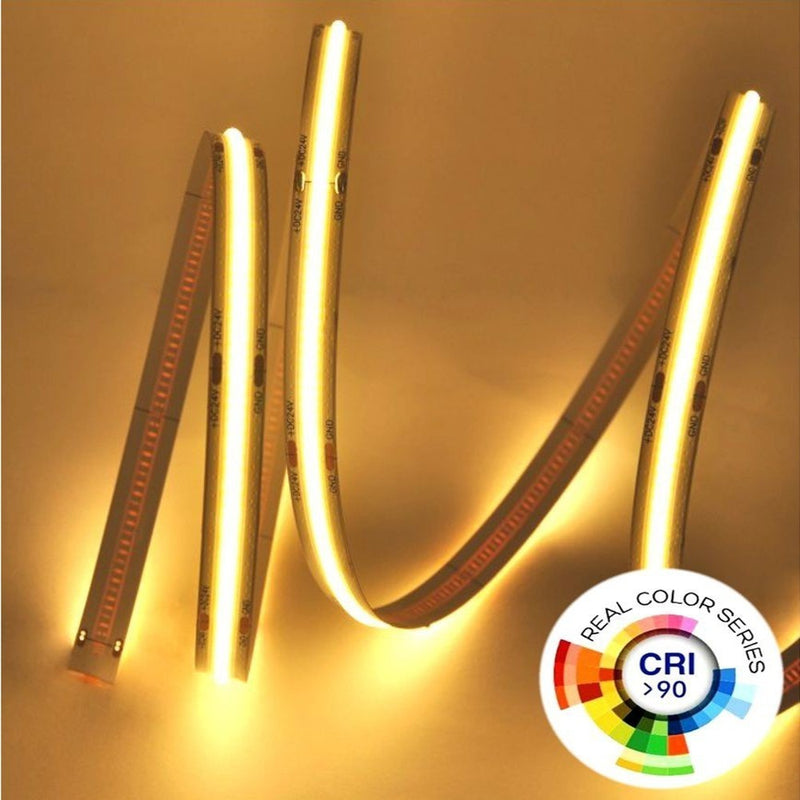

With its CRI>90 we make the colours look very real. This makes this led strip perfect to illuminate spaces where we want the colours to look perfect.

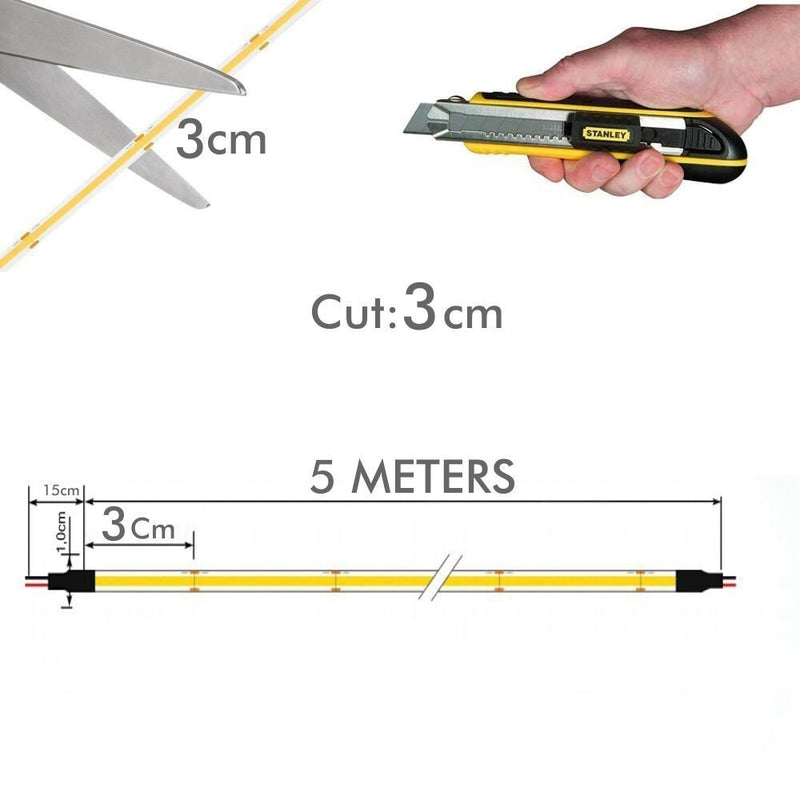

The LED strip can be cut and joined by the spaces indicated in it (union copper area), always following the relevant instructions, (be careful that the welder maintains a brief contact with the strip when welding it, since excessive heat will damage the conductor).
It is recommended that any type of installation of this type does not exceed 10 meters to avoid voltage drops of the direct current that powers the LED strips, although you also have the option of feeding the strip from both ends, a more recommended option if you go place 20 continuous meters. For the installation of more continuous meters, you will need the installation of signal amplifiers for the LED strip.
In its placement, to increase the useful life of the LED strip, it is advisable to use the double-sided heat dissipating tape, as well as to place it on an aluminium profile, for a correct management of the heat of the LED strip itself.
You can find on our website both signal amplifiers, such as dissipative tape, connection accessories, 12-24v power supplies, as well as aluminium profiles.

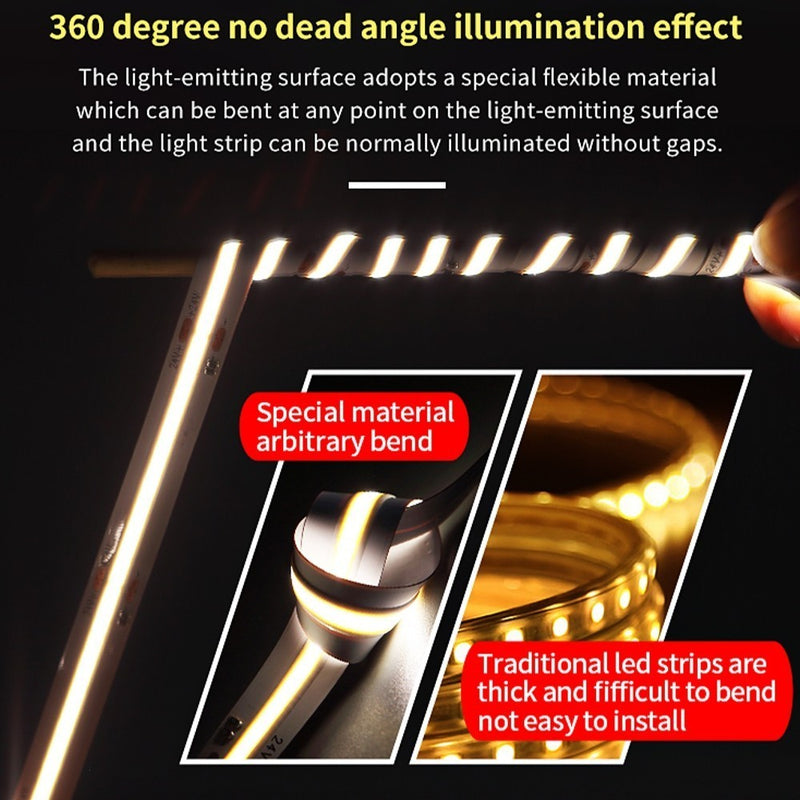

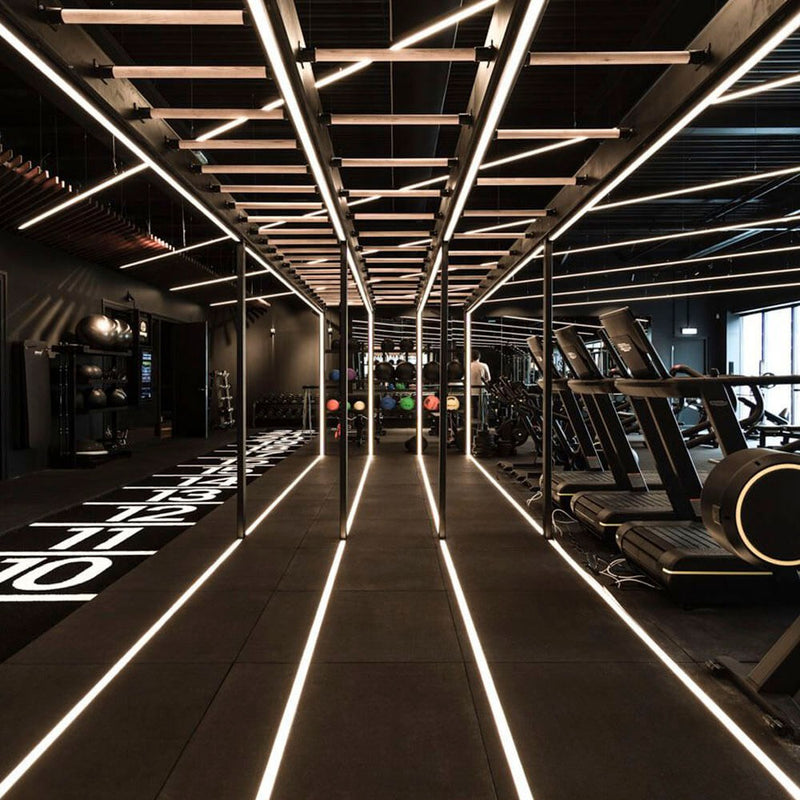

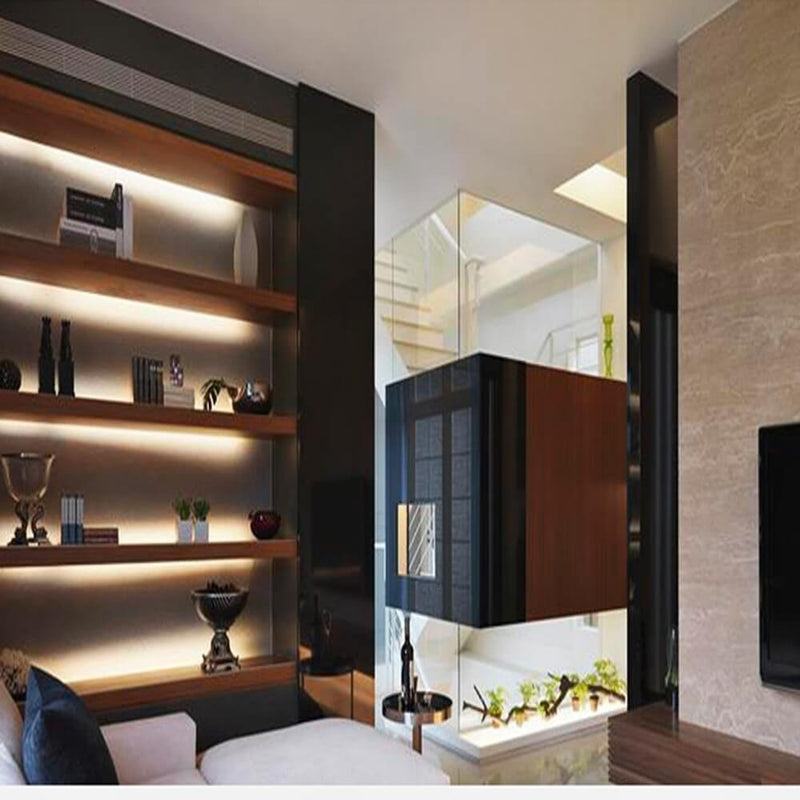

The LED strips are ideal to illuminate any type of corner or element of your business and your home, thanks to its flexibility. It can be said that one of its main advantages is the great versatility of uses that it can be given, since they can be installed in any area and adapt to any corner, and thus be placed in any position, due to its adaptable linear design.
Uses of LED Strip COB 24V | 512 LED/m | 5m | FLIP CHIP | 1650Lm | 15W/M | CRI90 | IP20
- In libraries
|Rated Power :||15w|
|Nominal Voltage:||24V DC|
|CRI - Chromatic Rendiment Index:||90|
|Luminosity-Lm:||1 Meter: 1650Lm - 5 Meter: 5000Lm|
|Number & Type of LEDs:||COB|
|Beam Angle (º):||180º|
|Luminous diodo LED (Lm/W):||110 Lm/W|
|Luminous Efficiency (Lm/W):||100Lm/W|
|Certifications:||CE - ROHS|
|Diode Life Expectancy (H):||100.000|
|Dimensions (mm):||5m. x 10mm|
|Temperature Range (ºC):||-20°C ~ +55°C|
|Energy Rating (2021-UE-2019/2015):||A+|
|Energy Rating (2023 - UE-2019/2015):||F|
